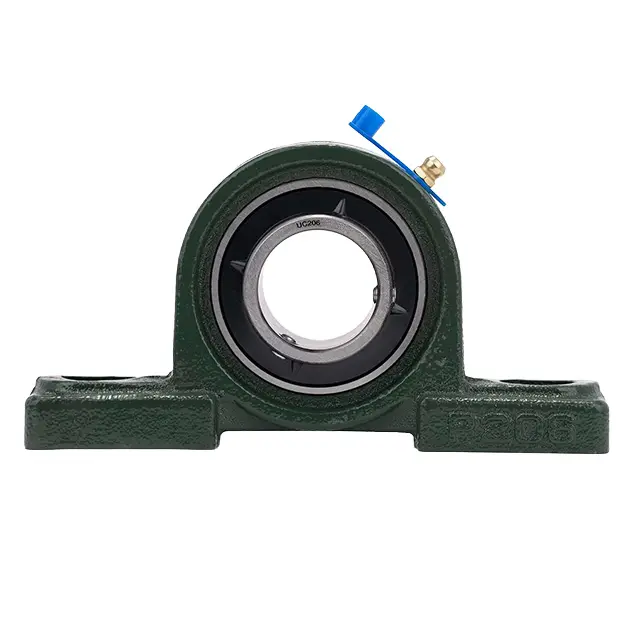

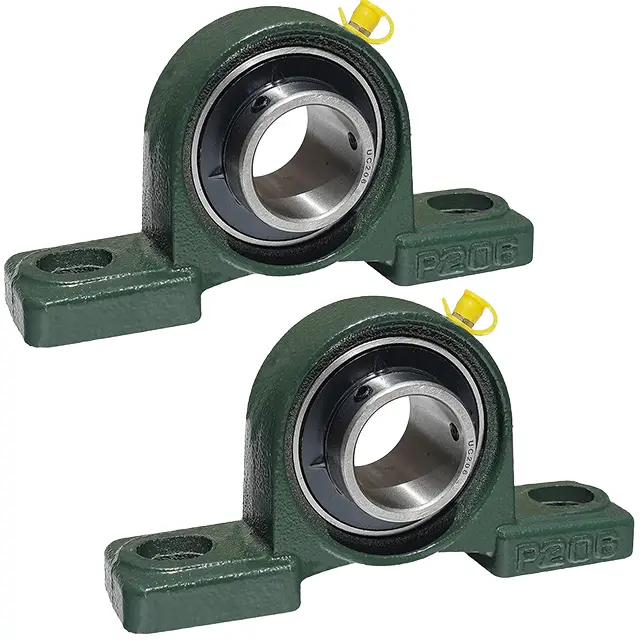

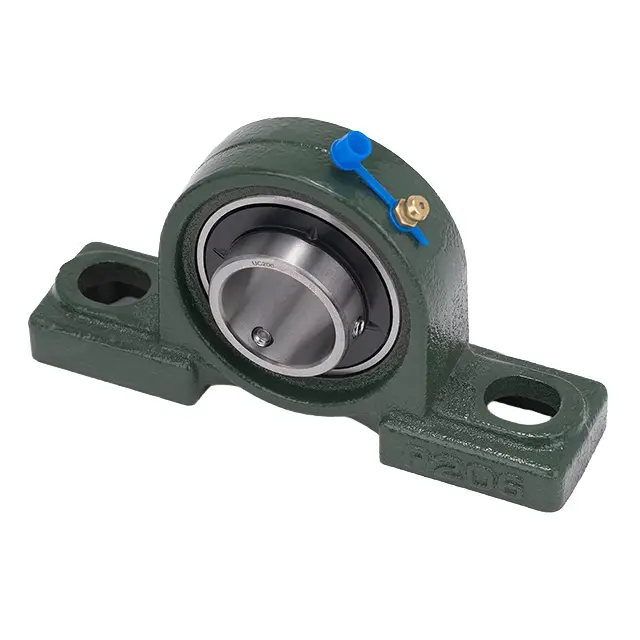

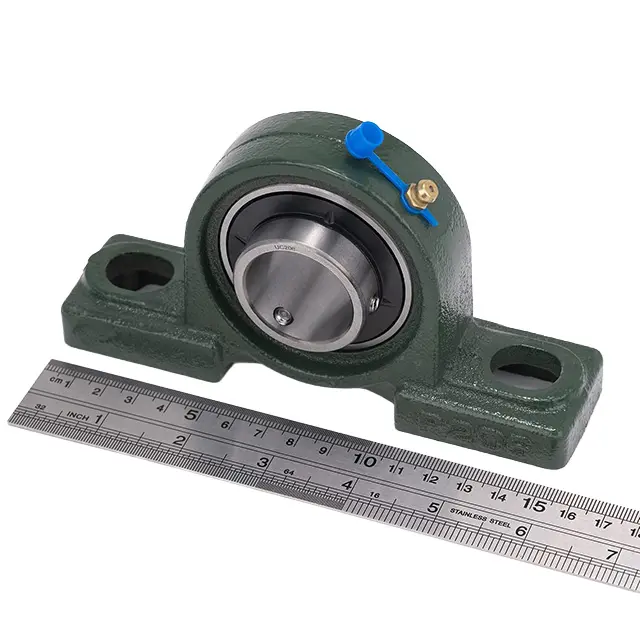

Product Overview
The UCP 206 is a versatile pillow block ball bearing unit designed for reliable shaft support in moderate-load industrial applications. This mounted bearing unit combines a self-aligning ball bearing insert with a robust cast iron housing, providing straightforward installation and simplified maintenance. The UCP 206 bearing accommodates minor shaft misalignment and deflection, delivering consistent rotational performance across a range of operating conditions. Its standardized mounting dimensions make it an ideal choice for conveyor systems, agricultural equipment, and material handling machinery where dependable shaft support is critical to operational uptime.Technical Specifications
<
>

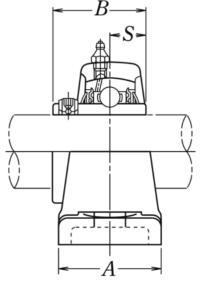

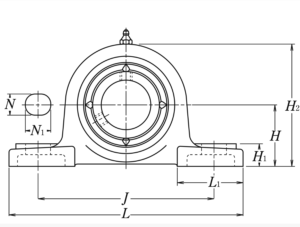

>| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Model | — | UCP 206 | — |
| Type | — | Pillow Block Ball Bearing Unit | — |
| Bore Diameter | d | 30 | mm |
| Outside Diameter | D | 62 | mm |
| Width | B | 38.1 | mm |
| Raceway Diameter of Inner Ring | FW | 30 | mm |
| Bearing Material | — | Chrome Steel (AISI 52100) | — |
| Basic Dynamic Load Rating | Cr | 20,000 | N |
| Basic Static Load Rating | C0r | 11,300 | N |
| Grease Lubrication Speed | — | 2,800 | rpm |
| Mass (approx.) | — | 1.3 | kg |
All bearing units are manufactured in accordance with ISO 15:2017 boundary dimension standards for rolling bearings, ensuring dimensional interchangeability with industry-standard UCP series housings.
Features and Benefits
- Chrome Steel Construction – Outer ring, inner ring, and rolling elements are manufactured from AISI 52100 chrome steel – provides excellent wear resistance and extended service life under continuous operation.
- Self-Aligning Insert Bearing – The spherical outer ring of the insert bearing accommodates initial shaft misalignment and housing deflection – reduces installation complexity and bearing stress.
- Set Screw Locking Mechanism – The bearing is secured to the shaft via set screws on the inner ring extension – offers reliable shaft retention and easy positioning.
- Pre-Greased and Sealed – Factory-packed with high-quality grease and protected by contact seals – minimizes maintenance requirements and protects against contamination during operation.
- Standardized Mounting Dimensions – Conforms to industry-standard UCP 206 housing footprint – simplifies replacement and reduces inventory complexity for maintenance teams.
Applications
Conveyor Systems
The self-aligning design of the UCP 206 bearing handles belt tension variations and minor shaft deflection common in conveyor applications, making it a reliable choice for continuous material transport.- Belt conveyors and roller conveyors
- Assembly line transfer systems
- Package sorting and distribution equipment
Agricultural Machinery
The sealed bearing unit resists dust and moisture ingress typical in farming environments, providing dependable operation in outdoor and semi-exposed installations.- Grain elevators and augers
- Feed handling equipment
- Sorting and grading machinery
Material Handling Equipment
The compact UCP 206 mounting footprint suits space-constrained installations in light-to-medium duty material handling systems.- Packaging machinery
- Light-duty hoists and winches
- Industrial fan and blower assemblies
Quality and Manufacturing
Each UCP 206 bearing unit is manufactured using AISI 52100 chrome steel for the bearing components and high-grade cast iron for the housing. The production process follows controlled heat treatment and precision grinding procedures to achieve consistent dimensional accuracy. Every unit is pre-lubricated with high-quality grease and double-sealed to protect against contamination during storage and initial operation. The housing is finished with a corrosion-resistant coating suitable for standard industrial environments.Why Choose Us for UCP 206 Bearing
We supply the UCP 206 bearing with a focus on delivery reliability and product consistency. Our team understands the demands of industrial procurement — from sample verification to volume production, we work to keep your supply chain running smoothly. Browse our full range of pillow block bearing units for additional options.- Competitive Lead Times – Fast turnaround on standard UCP 206 orders, with expedited options available for urgent requirements.
- Flexible MOQ – Whether you need a single unit for replacement or volume quantities for OEM production, we accommodate both small trials and bulk orders.
- Global Export Experience – We ship to multiple destinations worldwide, handling FOB, CIF, and EXW terms with reliable logistics partners.
- After-Sales Support – Our technical team assists with installation guidance and product selection to ensure the right bearing for your application.
