Product Overview

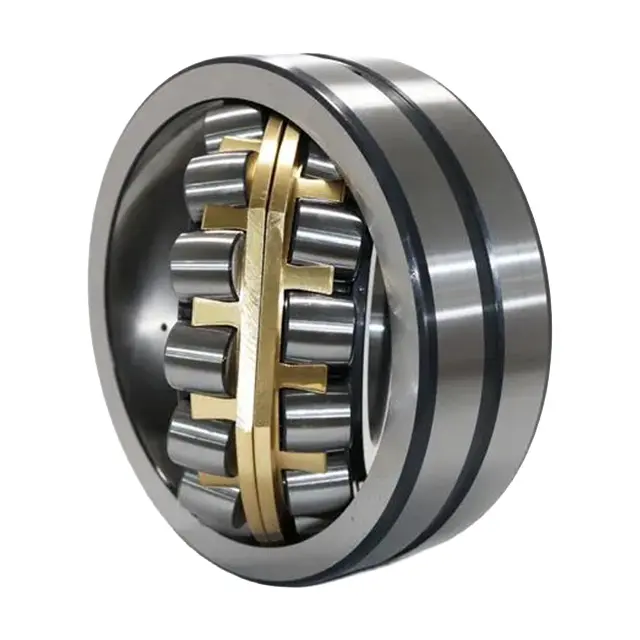

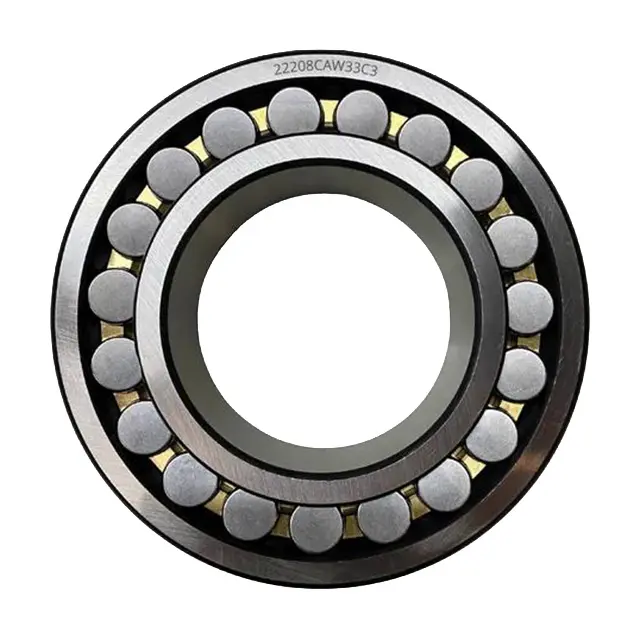

The 22208 spherical roller bearing is a self-aligning bearing designed for applications where shaft deflection or misalignment is present. With a 40mm bore, 80mm outer diameter, and 23mm width, this 22208 spherical roller bearing accommodates heavy radial loads and moderate axial loads in both directions. The CA suffix denotes a machined brass cage, offering superior strength, heat dissipation, and wear resistance compared to pressed steel cages, making this 22208 spherical roller bearing ideal for high-speed and high-temperature applications. The W33 suffix indicates a circumferential lubrication groove with three evenly spaced oil holes on the outer ring, enabling effective relubrication and extended maintenance intervals. Manufactured from high-grade GCr15 bearing steel to ISO tolerance standards, the 22208 CA/W33 delivers dependable operation in industrial machinery, mining equipment, and material handling systems.

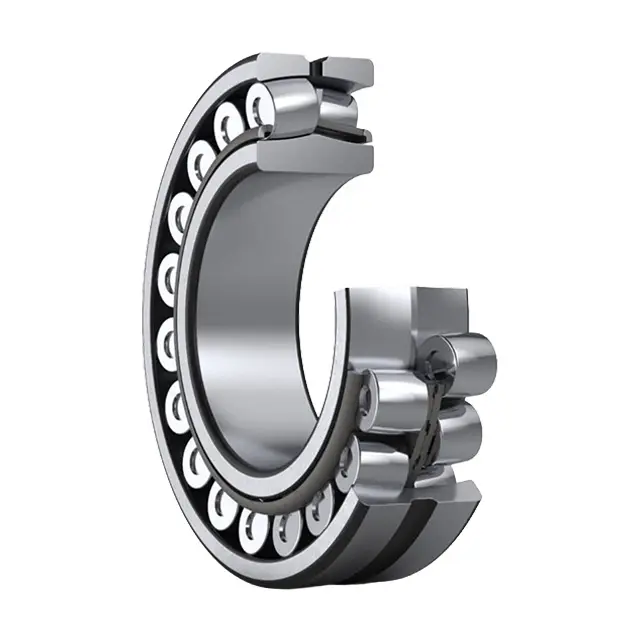

Technical Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Boundary Dimensions | |||
| Bore diameter | d | 40 | mm |
| Outside diameter | D | 80 | mm |
| Width | B | 23 | mm |
| Chamfer dimension | r (min.) | 1.1 | mm |
| Properties | |||
| Bearing Material | — | GCr15 Bearing Steel | — |
| Cage Material | — | Machined brass cage (CA) | — |
| Radial Internal Clearance | ISO | CN | — |
| Tolerance | ISO | Normal | — |
| Basic Load Ratings | |||
| Basic dynamic load rating | Cr | 110000 | N |
| Basic static load rating | C0r | 99000 | N |
| Speeds | |||
| Grease lubrication | — | 6100 | rpm |
| Oil-bath lubrication | — | 8100 | rpm |
| Mass | |||
| Mass (approx.) | — | 0.5 | kg |
All dimensions and tolerances conform to ISO 15:2011 for boundary dimensions and ISO 492 for tolerance standards.
Features and Benefits
- Self-aligning design — Compensates for shaft deflection and housing misalignment, reducing installation complexity and extending bearing service life. This 22208 spherical roller bearing self-aligning capability simplifies setup in demanding industrial environments.
- Machined brass cage (CA) — Provides superior strength and heat dissipation compared to pressed steel cages, enabling reliable operation at higher speeds and temperatures for the 22208 spherical roller bearing.
- Lubrication groove and oil holes (W33) — Facilitates efficient relubrication directly to the rolling elements, reducing maintenance frequency and prolonging grease life in this 22208 spherical roller bearing.
- High load capacity — Optimized internal geometry accommodates heavy radial loads and moderate axial loads in both directions, suitable for demanding industrial applications requiring a reliable 22208 spherical roller bearing.
- GCr15 bearing steel construction — High-carbon chromium steel offers excellent wear resistance, dimensional stability, and fatigue life under continuous operation.
Applications
Industrial Machinery
The self-aligning capability and high load rating of the 22208 CA/W33 make it well suited for industrial gearboxes, fans, blowers, and pumps where shaft deflection or mounting inaccuracies may occur. This 22208 spherical roller bearing is a proven solution for these challenging radial and axial load conditions.
- Gearbox assemblies
- Centrifugal fans and blowers
- Industrial pumps
- Conveyor systems
Mining and Material Processing
Heavy radial loads and contaminant-prone environments are common in mining and material processing equipment. The 22208 spherical roller bearing delivers reliable performance under these challenging conditions, making it a trusted choice for crushers and screening equipment.
- Crushers and vibrating screens
- Belt conveyors and bucket elevators
- Agitators and mixers
Agricultural Equipment
Agricultural machinery exposes bearings to heavy loads, variable speeds, and harsh environments. The 22208 CA/W33 provides the durability required for continuous field operation as a reliable 22208 spherical roller bearing.
- Tractor power take-off systems
- Harvesters and balers
- Feed processing equipment
For more bearing options, explore our full range of spherical roller bearings.
Quality and Manufacturing
Each 22208 spherical roller bearing is manufactured from premium GCr15 bearing steel (equivalent to AISI 52100) and undergoes rigorous quality control throughout the production process. This 22208 spherical roller bearing is produced to ISO 492 Normal tolerance class and ISO 15 boundary dimensions, ensuring interchangeability and consistent performance. Radial internal clearance is set to CN (Normal) per ISO 5753 standards, suitable for most general operating conditions with standard fit tolerances.
Why Choose Us for 22208 spherical roller bearing
At Talos Bearing, we combine specialized spherical roller bearing expertise with direct factory sourcing — delivering 22208 CA/W33 bearings that meet genuine OEM specifications, not cheap imitations. Every order is backed by material traceability, lot-level QC, and a global logistics network built for B2B industrial buyers.
- Genuine CA Brass Cage – Verified Per Batch — The CA suffix demands a machined brass cage for superior heat dissipation and wear resistance. We source and inspect each production batch to guarantee authentic CA-spec brass — never substituted pressed steel. Non-conforming lots are rejected before shipment.
- Factory-Direct Pricing, No Middlemen — Direct from ISO 9001-certified production lines to your door. Competitive pricing whether you need a single sample for qualification or full container loads for OEM production runs.
- Lot Traceability & Material Certification — GCr15 bearing steel (AISI 52100 equivalent) with mill certificates available per lot. Full traceability from raw material chemistry through heat treatment, grinding, and final assembly.
- Application Engineering Support — Free technical assistance on 22208 bearing selection, internal clearance (C0/C1/C2/C3/C4) recommendations, fitment tolerances, lubrication intervals, and cross-referencing competitor equivalents (SKF, FAG, NSK, NTN).
- Reliable Global Logistics — 3–7 day dispatch from stock. Air freight, sea freight, or express courier to 60+ countries. Ex works, FOB, CIF, or DDP terms available with full export documentation.
Frequently Asked Questions
What is the bore diameter of the 22208 CA/W33 bearing?
The 22208 CA/W33 spherical roller bearing has a 40 mm bore diameter (d), with an 80 mm outer diameter (D) and a 23 mm width (B).
What does the CA suffix mean in 22208 CA/W33?
The CA suffix indicates that the bearing is equipped with a machined brass cage, which provides higher strength, better heat dissipation, and improved wear resistance compared to stamped steel cages, making it suitable for higher speed and temperature applications.
What does the W33 suffix mean in 22208 CA/W33?

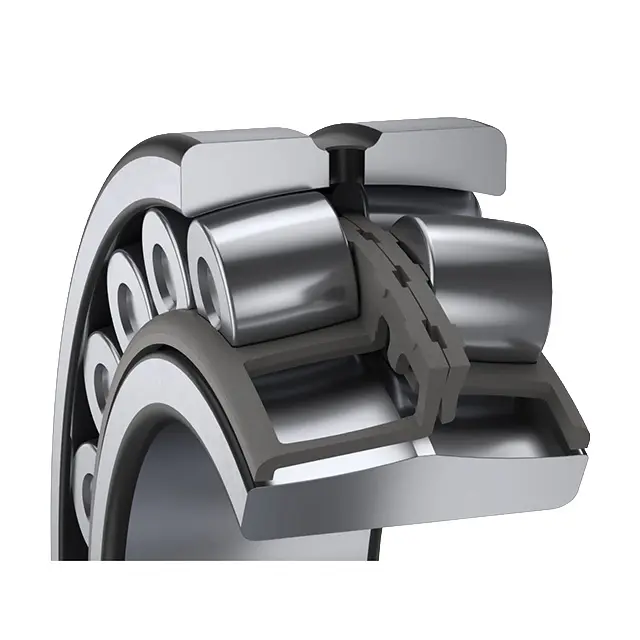

The W33 suffix indicates that the outer ring features a circumferential lubrication groove with three evenly spaced oil holes, enabling effective relubrication to the rolling elements and raceways without dismounting the bearing.
What is the dynamic load rating of the 22208 CA/W33 bearing?
The basic dynamic load rating (Cr) of the 22208 CA/W33 spherical roller bearing is 110,000 N, and the basic static load rating (C0r) is 99,000 N, making it suitable for heavy radial load applications.
What is the maximum speed of the 22208 CA/W33 bearing?
The 22208 CA/W33 spherical roller bearing has a grease lubrication speed rating of 6,100 rpm and an oil-bath lubrication speed rating of 8,100 rpm. Always consult the product datasheet for specific application conditions.
Can the 22208 CA/W33 bearing replace other brand equivalents?
The 22208 CA/W33 follows standard ISO 15 boundary dimensions (40×80×23 mm), making it dimensionally interchangeable with other manufacturers’ 22208 series spherical roller bearings with CA and W33 suffixes, subject to cage design and internal clearance verification.
