The 6201 ZZ bearing is one of the most widely used deep groove ball bearings in light-to-medium industrial applications. With a compact 12 mm bore, 32 mm outside diameter, and 10 mm width, this shielded bearing delivers reliable performance across electric motors, power tools, pumps, and automotive auxiliary systems. Whether you are an engineer selecting components for a new assembly or a procurement professional sourcing replacement bearings, understanding this bearing’s dimensions, load ratings, speed limits, and shield configuration is essential for making the right choice. This comprehensive guide covers everything you need to know about this popular metric bearing — from its technical specifications and construction features to practical buying considerations and common misconceptions.
What Is a 6201 ZZ Bearing?
The 6201 ZZ bearing is a single-row deep groove ball bearing belonging to the ISO 6200 series of metric radial ball bearings. It is identifiable by its 12 mm bore (the “01” in the model number indicates a 12 mm bore under the ISO bearing size designation system), and the “ZZ” suffix indicates it is fitted with a metal shield on both sides.
As a deep groove ball bearing, the 6201 features raceway grooves on both the inner and outer rings that are deeper than those found in basic radial ball bearings. This design allows it to accommodate not only radial loads (perpendicular to the shaft) but also moderate axial loads (parallel to the shaft) in both directions. The deep groove geometry also provides lower running friction and higher speed capability compared to other bearing types of similar size.
This bearing is manufactured from high-carbon chromium steel (GCr15 / 52100 equivalent), with heat-treated rings and balls that achieve a Rockwell hardness of approximately 60–65 HRC. The cage is typically stamped steel, although some variants use polyamide (nylon) cages for quieter operation in lower-load applications. These material choices give this model a good balance of durability, fatigue resistance, and cost-effectiveness for volume production.
6201 ZZ Bearing Dimensions and Specifications
Bore Diameter, Outside Diameter, and Width
This bearing follows the standardised metric dimensions defined by ISO 15 for rolling bearings. Its key dimensional parameters are:
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Bore Diameter | d | 12 | mm |
| Outside Diameter | D | 32 | mm |
| Width | B | 10 | mm |
| Chamfer (min.) | r | 0.6 | mm |
| Weight (approx.) | — | 0.037 | kg |
These dimensions are identical across all manufacturers — SKF, NSK, FAG, NTN, and independent producers all adhere to the same ISO standard, which means this bearing is fully interchangeable between brands as long as the same tolerance and clearance class is specified.
Load Ratings (Dynamic and Static)
The load-carrying capacity of the 6201 ZZ bearing is defined by two key ISO ratings:
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Basic Dynamic Load Rating | Cr | 6,800 | N |
| Basic Static Load Rating | C0r | 3,050 | N |
| Fatigue Load Limit | Pu | ~130 | N |
The dynamic load rating (Cr = 6,800 N) is the load under which the bearing achieves a basic rating life of 1,000,000 revolutions. In practical terms, this model operating at 3,400 N (50% of Cr) in a clean, well-lubricated environment can be expected to achieve a calculated L10 life well in excess of 10,000 hours at moderate speeds. The static load rating (C0r = 3,050 N) represents the maximum load the bearing can withstand without permanent deformation of the rolling elements or raceways.
Speed Limits and Lubrication
As a shielded bearing, this model is pre-greased at the factory and designed for maintenance-free operation over its service life. The grease is typically a lithium-based mineral oil grease with a consistency suitable for the bearing’s operating temperature range of −20°C to +120°C (−4°F to 248°F).
| Lubrication Type | Maximum Speed (rpm) |
|---|---|
| Grease Lubrication (factory-filled) | 22,000 |
The 22,000 rpm grease-speed limit makes this bearing suitable for small electric motors running at 2-pole synchronous speeds (up to ~3,600 rpm at 60 Hz) as well as many power tool and pump applications. Operating continuously near the thermal speed limit requires careful consideration of heat dissipation and housing fit — in most real-world applications this bearing runs well below its rated limit, which extends both grease life and overall bearing service life.
Tolerance and Clearance Classes
The standard model is manufactured to ISO tolerance class P0 (equivalent to ABEC 1), which is the most common precision grade for general industrial use. This tolerance class ensures consistent running accuracy and full interchangeability between manufacturers. The radial internal clearance is typically C0 (Normal), suitable for most applications with standard shaft and housing fits where the temperature differential between inner and outer rings does not exceed approximately 25°C.
For applications requiring tighter running precision (e.g., spindles or precision instruments), this bearing is also available in P6 (ABEC 3) or P5 (ABEC 5) tolerance classes, though these variants are less commonly stocked and typically require special ordering.

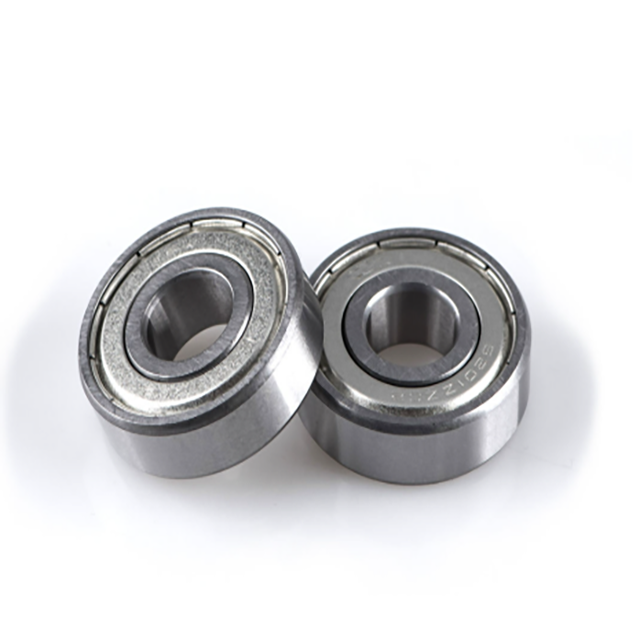

What Does “ZZ” Mean? Understanding Shielded Bearings
The “ZZ” suffix in a 6201 ZZ bearing stands for “double-Z” or “two-Z,” meaning the bearing is fitted with a non-contact metal shield on each side. These shields are typically made from cold-rolled steel strip and are pressed or staked into a groove in the outer ring, creating a narrow labyrinth gap between the shield inner diameter and the inner ring land.
Understanding the difference between shielded (ZZ) and sealed (2RS or 2RU) bearings is important for selecting the right ball bearing for a given environment:
| Feature | 6201 ZZ (Shielded) | 6201 2RS (Sealed) |
|---|---|---|
| Contaminant Protection | Moderate — blocks large particles and dust | High — blocks dust, moisture, and fine debris |
| Friction | Low (non-contact gap) | Moderate (contact lip seal) |
| Maximum Speed | Higher (up to 22,000 rpm) | Lower (contact seal generates heat) |
| Grease Retention | Good — labyrinth gap resists leakage | Excellent — lip seal prevents leakage |
| Operating Temperature | −20°C to +120°C | −20°C to +100°C (seal material limited) |
| Re-lubrication | Not designed for re-lubrication | Not designed for re-lubrication |
For applications in relatively clean, dry environments where high speed is a priority — such as electric motors, power tools, and light industrial machinery — the 6201 ZZ offers an excellent trade-off between protection and performance. In wet, dusty, or chemically aggressive environments, a sealed 6201 2RS bearing would be more appropriate despite its slightly lower speed capability.
Why the 6201 ZZ Bearing Matters in Practice
The 6201 ZZ bearing occupies a practical sweet spot in the bearing size spectrum. It is small enough to fit into compact assemblies — handheld power tools, small motor housings, pulley systems — yet robust enough to handle the loads and speeds typical of fractional-horsepower electric drives. Its popularity means it is widely stocked by bearing distributors at competitive prices, with short lead times even for moderate-to-large quantities.
Several factors contribute to the 6201 ZZ bearing’s strong position in the industrial bearing market:
- Standardisation. As an ISO 6200-series bearing, the 6201 ZZ is manufactured in consistent dimensions by virtually every major bearing producer worldwide. This makes sourcing, cross-referencing, and replacement straightforward regardless of the original equipment manufacturer.
- Cost efficiency. The combination of chrome steel construction, stamped steel cage, and simple shield assembly keeps manufacturing costs low without compromising reliability — an important consideration for volume OEM buyers.
- Versatility. The bearing’s deep groove geometry means it can handle combined radial and axial loads, eliminating the need for a second bearing (such as a separate thrust bearing) in many simpler assemblies. This reduces part count, assembly time, and overall system cost.
- Low maintenance. The pre-greased, shielded design means the bearing is effectively “fit and forget” in moderate-duty applications — no external lubrication system, no periodic greasing schedule, and no risk of over-lubrication or under-lubrication.
For OEMs and maintenance teams alike, the 6201 ZZ bearing represents a proven, low-risk choice that combines predictable performance with easy availability. This combination of factors makes it one of the most frequently specified bearings in the 6200-series range. For cross-referencing against other manufacturers’ part numbers, the SKF deep groove ball bearing technical portal provides detailed load rating and life calculation data that applies directly to the 6201 ZZ specification.
Common Applications of the 6201 ZZ Bearing
This bearing appears in a wide variety of mechanical equipment, particularly where space is limited but reliable radial load support is needed at moderate to high speeds. Below are the most typical application categories:
Electric Motors
Small AC induction motors (frame sizes 56 and 63), DC motors used in automation equipment, and universal motors found in household appliances commonly use this bearing on both the drive end and non-drive end. Its 22,000 rpm speed rating comfortably exceeds the requirements of 2-pole motors running at 3,600 rpm (60 Hz) or 3,000 rpm (50 Hz).
Power Tools
Angle grinders, rotary hammers, drills, and cut-off tools rely on this bearing to support the armature shaft and gear train. The shielded design helps protect the bearing from the dust and debris generated during cutting, grinding, and drilling operations while maintaining the high rotational speeds these tools require.
Automotive Auxiliary Systems
Alternators, starter motors, cooling fan assemblies, and window lift mechanisms in passenger vehicles frequently use this bearing. In these applications it operates in a relatively protected environment (inside the engine bay or cabin), and the ZZ shield provides adequate protection against road dust while keeping grease in place during hot operation.
Pumps and Compressors
Small centrifugal pumps, circulation pumps, and fractional-horsepower air compressors use this bearing for shaft support at the impeller end. The bearing’s ability to handle moderate axial thrust (from hydraulic imbalance) combined with its radial load capacity makes it a practical choice for these dynamic-load applications.
Conveyor and Material Handling
Light-duty conveyor rollers, belt tensioners, and idler pulleys in packaging, food processing, and warehouse automation systems are common deployment points for this model. The low friction of the shielded design helps keep power consumption down in systems with many rollers, while the sealed-for-life grease charge reduces maintenance frequency on multi-roller lines.
For a full overview of compatible types and sizes, browse our complete range of deep groove ball bearings.
Common Misconceptions About the 6201 ZZ Bearing
Misconception 1: “ZZ” means it is waterproof
This is the most frequent misunderstanding about shielded bearings. The metal shield on this bearing creates a labyrinth gap — it is not a contact seal. While this gap is narrow enough to block dust and large particles, it does not prevent water ingress. If the bearing will be exposed to moisture, washdown environments, or steam cleaning, a 6201 2RS rubber-sealed version should be specified instead.
Misconception 2: A higher ABEC grade is always better
For most applications of this bearing, the standard P0 (ABEC 1) tolerance class is entirely adequate. Upgrading to ABEC 3 or ABEC 5 increases the bearing cost by 30–100% or more but provides no measurable benefit in a typical motor or pump application — the system’s overall running accuracy is limited by housing and shaft machining tolerances, not by the bearing’s internal precision. Higher ABEC grades should be reserved for precision spindles, measuring instruments, and similar high-accuracy applications.
Misconception 3: All 6201 bearings are the same regardless of suffix
The base “6201” defines only the bearing series and dimensions. The suffix — ZZ, 2RS, NR (snap ring groove), C3 (increased clearance), or P5 (higher precision) — completely changes the bearing’s characteristics. A 6201 ZZ and a 6201 C3 ZZ serve different purposes (normal clearance vs. increased clearance for thermal expansion), and specifying the wrong suffix for the application can lead to premature failure. Always confirm both the base number and all suffixes when ordering replacements.
Misconception 4: The 6201 ZZ bearing can be re-greased in service
The ZZ shields on this bearing are not designed for removal and reinstallation. Attempting to pry the shields off for re-greasing typically damages the shield seating groove, the shield itself, or the cage. If an application requires periodic re-lubrication, specify an open (no suffix) 6201 bearing or one with a lubrication groove (suffix W) instead of a shielded variant.
Frequently Asked Questions
What is the bore diameter of a 6201 ZZ bearing?
The 6201 ZZ bearing has a bore diameter of 12 mm, an outside diameter of 32 mm, and a width of 10 mm. These dimensions conform to ISO 15 standard for the 6200 series of deep groove ball bearings.
What is the difference between 6201 ZZ and 6201 2RS bearings?
The 6201 ZZ uses non-contact metal shields on both sides, offering lower friction and higher speed capability (up to 22,000 rpm). The 6201 2RS uses contact rubber seals that provide better protection against moisture and fine contaminants but generate slightly more friction and have a lower speed rating. Choose ZZ for clean, dry, high-speed applications and 2RS for harsh or wet environments.
What is the maximum speed of a 6201 ZZ bearing?
The 6201 ZZ bearing can operate at up to 22,000 rpm with grease lubrication. This makes it suitable for high-speed applications such as small electric motors and power tools. Actual permissible speed may be lower depending on load, operating temperature, and housing fit.
What is the load rating of the 6201 ZZ bearing?
The 6201 ZZ bearing has a basic dynamic load rating (Cr) of 6,800 N and a static load rating (C0r) of 3,050 N. These values define the bearing’s capacity to support radial and axial loads under rotating and stationary conditions respectively, as defined by ISO 281.
Can the 6201 ZZ bearing handle axial loads?
Yes. As a deep groove ball bearing, the 6201 ZZ can accommodate moderate axial loads in both directions in addition to radial loads. Typically, the axial load capacity is up to approximately 0.5 × C0r for pure axial loading, though combined radial-axial loading should be verified against the manufacturer’s rating curves.
Is 6201 ZZ bearing the same as 6201Z?
No. 6201Z (or 6201-Z) has a single shield on one side only, while 6201 ZZ has shields on both sides. The single-shield variant is sometimes used when one side of the bearing can be protected by the housing design, but the double-shielded 6201 ZZ is far more common in general-purpose applications.
What material is the 6201 ZZ bearing made from?
The 6201 ZZ bearing is manufactured from high-carbon chromium steel (GCr15 / SAE 52100) for the rings and balls, with a stamped steel or pressed steel cage. This material combination provides excellent hardness, wear resistance, and dimensional stability under normal operating conditions, conforming to ISO 683-17 requirements for bearing steels.
How much does a 6201 ZZ bearing weigh?
A standard 6201 ZZ bearing weighs approximately 0.037 kg (37 grams). This light weight makes it suitable for high-speed rotating assemblies where minimising rotating mass is important for dynamic performance.
Conclusion
The 6201 ZZ bearing is a reliable, versatile, and widely available deep groove ball bearing that serves a broad cross-section of industrial applications. With its standardised 12×32×10 mm dimensions, 6,800 N dynamic load rating, 22,000 rpm speed capability, and durable chrome steel construction, it offers a proven solution for electric motors, power tools, pumps, and automotive systems where dependable radial and moderate axial load support is required in a compact package.
Understanding the bearing’s specifications — from the ZZ shield configuration and tolerance classes to the load ratings and material composition — allows engineers and procurement professionals to select the correct variant with confidence. Whether you are specifying bearings for a new product design, sourcing replacements for an existing assembly, or building a cross-reference database, this model represents a safe, cost-effective choice backed by decades of standardised manufacturing and field-proven performance.
